Air curtain equipment

Air Curtains

Compare air curtains from opening geometry, mounting height, exposure condition, voltage, and control needs before narrowing the series.

Open doors create comfort complaints, insect entry, dust movement, and temperature swings that need doorway-specific review.

Air Curtains: Air curtains for retail doors, service entrances, cold-room openings, and light industrial access points.

Updated 2026-07-06
W door width H door height MH mount height V voltage

Products

Air Curtain Product Series

Compare air curtain models by doorway width, mounting height, heated or unheated build, controls, and application fit.

Q Cross-Flow Air Curtain Series equipment view

Air curtain series

Q Cross-Flow Air Curtain Series

Q cross-flow air curtain series for shops, retail doors, restaurants, storefront entrances, and compact commercial doors where width, mounting height, traffic, controls, and model documents need a practical first review.

Typical applications
Door use
Retail doors
Opening condition
Storefront entrances
Selection focus
Restaurant doors
Public selection data
Airflow
Air velocity 11 / 9 m/s high / low; confirm exact airflow by model
Dimensions
600/900/1000/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted door unit; installation height 2.0-2.5 m
View series
S Heavy-Duty Air Curtain Series equipment view

Air curtain series

S Heavy-Duty Air Curtain Series

S heavy-duty air curtain series for larger commercial openings where dust separation, temperature change, mounting height, voltage, and current model documents matter.

Typical applications
Door use
Large doors
Opening condition
Service openings
Selection focus
Dust and temperature separation
Public selection data
Airflow
1400-4000 m3/h high speed; 1100-3200 m3/h low speed
Dimensions
900/1000/1200/1500/1800/2000 x 158 x 184 mm model sizes
Mounting
Surface-mounted unit; mounting height 2.5-3.0 m
View series
B Rust-Resistant Air Curtain Series equipment view

Air curtain series

B Rust-Resistant Air Curtain Series

B rust-resistant air curtain series for restaurant entrances and commercial doors where casing material, airflow, motor details, controls, and project size need early review.

Typical applications
Door use
Restaurant doors
Opening condition
Commercial entries
Selection focus
OEM size review
Public selection data
Airflow
Air velocity 11 / 9 m/s high / low; confirm exact airflow by model
Dimensions
900/1000/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted unit; installation height 2.5-3.0 m
View series
D Commercial Air Curtain Series equipment view

Air curtain series

D Commercial Air Curtain Series

D commercial air curtain series for malls, warehouses, service doors, delivery entrance air curtain review, and distributor projects where opening width, traffic, mounting clearance, and motor documents guide selection.

Typical applications
Door use
Malls
Opening condition
Warehouses
Selection focus
Commercial doors
Public selection data
Airflow
Air velocity 13 / 11 m/s high / low for 1200-class models; up to 17 / 14 or 21 / 18 m/s on centrifugal variants
Dimensions
900/1000/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted unit; installation height 3.0-5.0 m by model
View series
Q6 Powerful Air Curtain Series equipment view

Air curtain series

Q6 Powerful Air Curtain Series

Q6 powerful air curtain product page for restaurant entrances and retail doors where frequent door activity, mounting height, voltage, controls, and model documents need review.

Typical applications
Door use
Restaurants
Opening condition
Retail entrances
Selection focus
Frequent door traffic
Public selection data
Airflow
air volume 1800-4000 m3/h high speed; 1400-3200 m3/h low speed by model
Dimensions
900/1000/1200/1500/1800/2000 x 190 x 210 mm model sizes; confirm inch dimensions
Mounting
Surface-mounted entrance air curtain; mounting height 2.5-3.0 m
View series
X5 Centrifugal Air Curtain Series equipment view

Air curtain series

X5 Centrifugal Air Curtain Series

X5 centrifugal air curtain series for taller commercial doors where mounting height, discharge reach, sound expectations, voltage, and current model documents matter.

Typical applications
Door use
Taller doors
Opening condition
Commercial entries
Selection focus
High-airflow review
Public selection data
Airflow
Air velocity 17 / 14 m/s high / low or 21 / 18 m/s by model; confirm exact intake and model class
Dimensions
900/1000/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted unit; installation height 3.5-4.0 m or 4.0-5.0 m by model
View series
X7 Cross-Flow Air Curtain Series equipment view

Air curtain series

X7 Cross-Flow Air Curtain Series

X7 cross-flow air curtain series for small and medium storefront entrances where width, header space, controls, and distributor stocking needs stay practical.

Typical applications
Door use
Small storefronts
Opening condition
Wholesale programs
Selection focus
General commercial doors
Public selection data
Airflow
air volume 1200-2700 m3/h by model; confirm exact airflow before submittal use
Dimensions
900/1000/1200/1500/1800/2000 x 225 x 245 mm model sizes; confirm inch dimensions
Mounting
Surface-mounted unit; verify header clearance and cabinet projection
View series
A5 Restaurant Air Curtain Series equipment view

Air curtain series

A5 Restaurant Air Curtain Series

A5 restaurant air curtain product page for food service doors, restaurant air curtains, restaurant air curtain searches, restaurant door air curtain, dining entrance separation, and kitchen-adjacent door comfort where odor source, cleaning access, traffic, voltage, controls, and current documents should be checked.

Typical applications
Door use
Restaurant doors
Opening condition
Food service entrances
Selection focus
OEM programs
Public selection data
Airflow
Air velocity 11 / 9 m/s high / low; confirm exact airflow by model
Dimensions
900/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted restaurant entrance unit; installation height 2.5-3.0 m
View series

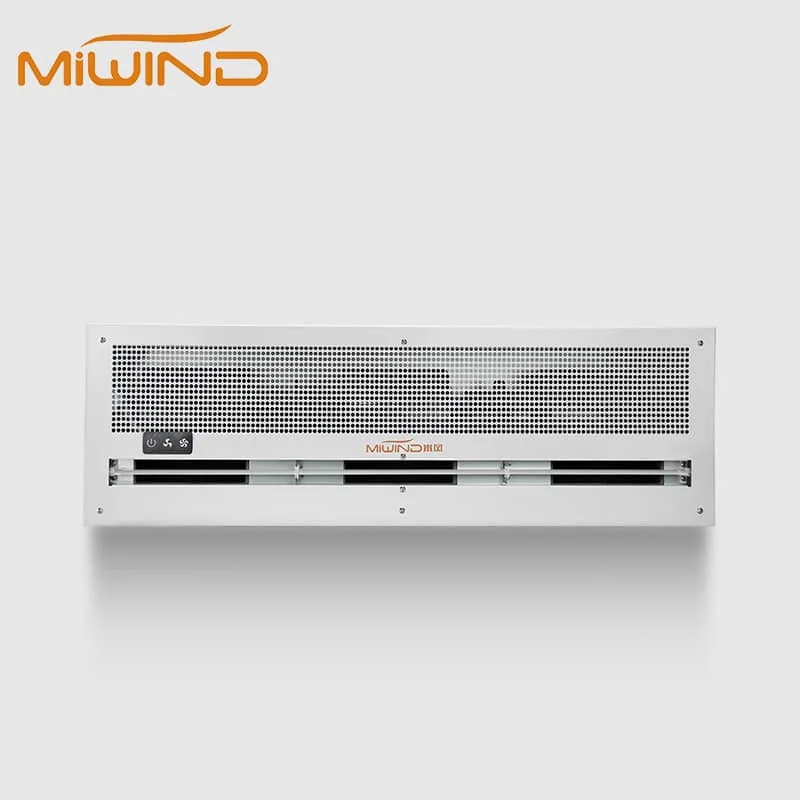

Ceiling Mounted Air Curtain Series equipment view

Air curtain series

Ceiling Mounted Air Curtain Series

Ceiling mounted air curtain series for limited wall space, constrained headers, recessed openings, and overhead installation where finished door width, mounting height, ceiling opening, plenum depth, discharge path, and service access need early review.

Typical applications
Door use
Overhead mounting
Opening condition
Recessed ceiling openings
Selection focus
Constrained headers
Public selection data
Airflow
air volume 1260-3300 m3/h high speed; 1000-2600 m3/h low speed by model
Dimensions
900/1000/1200/1500/1800/2000 x 225 x 290 mm model sizes; confirm inch dimensions
Mounting
Ceiling mounted / recessed; mounting height 3.5-4.0 m or 4.0-5.0 m by model class
View series

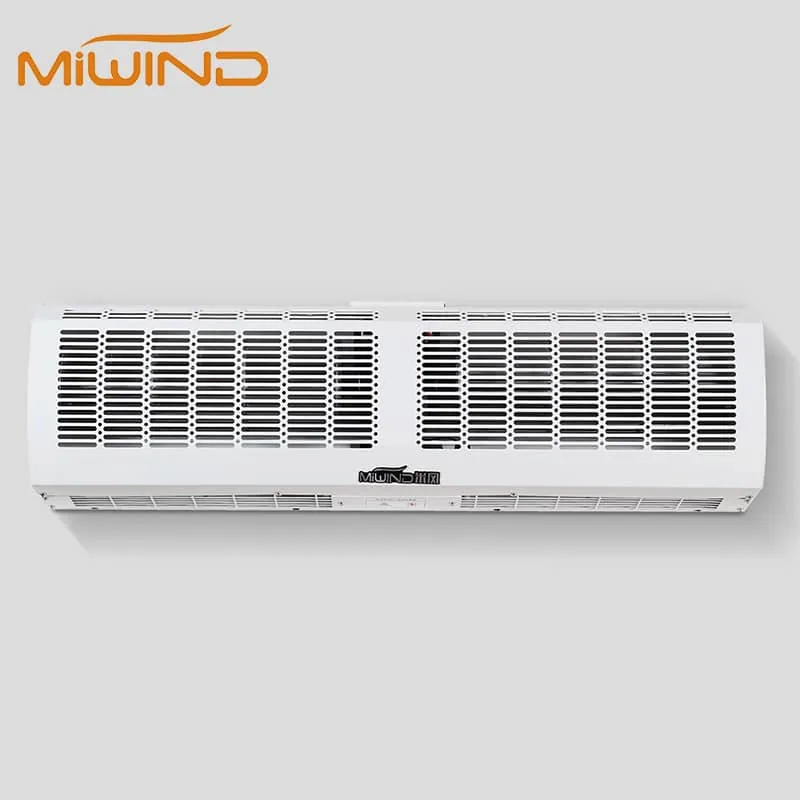

A3 Heating Air Curtain Series equipment view

Air curtain series

A3 Heating Air Curtain Series

A3 heating air curtain series for retail and cold-weather entrances where doorway comfort, air barrier fit, voltage, heating function, and controls need early review.

Typical applications
Door use
Retail comfort
Opening condition
Cold-weather entries
Selection focus
Heated entrance review
Public selection data
Airflow
Air velocity 7 / 5 m/s high / low; confirm exact airflow by model
Dimensions
900/1200/1500/1800 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted heated unit; installation height 2.5-3.5 m
View series

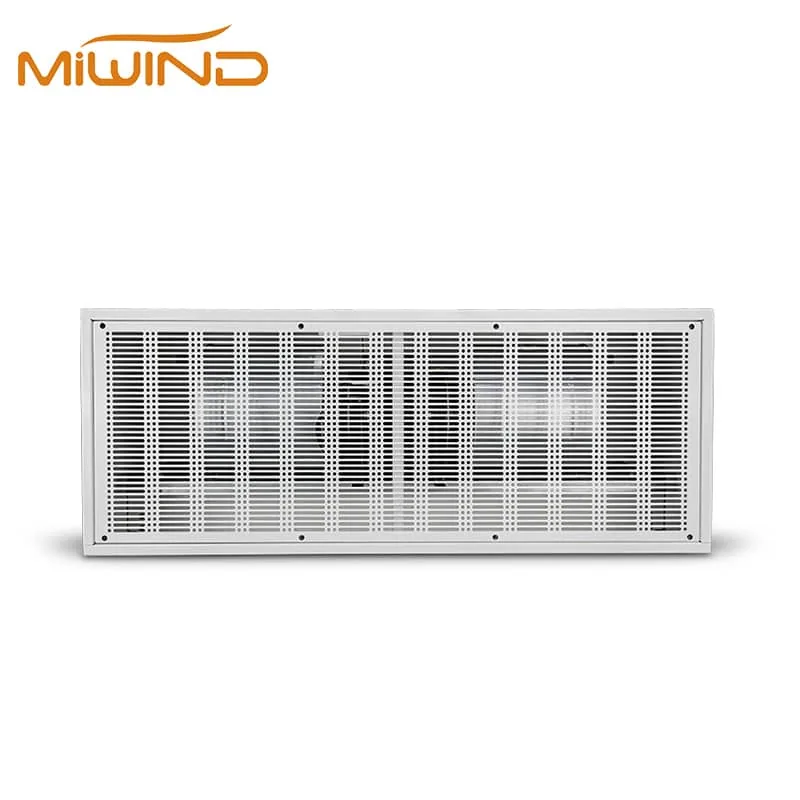

Industrial Air Curtain Series equipment view

Air curtain series

Industrial Air Curtain Series

industrial air curtain product page for factory gates, air curtain industrial searches, industrial air curtain searches, and large service opening air curtain selection path where mounting structure, door height, opening width, traffic, dust, humidity, exposure, voltage, controls, and service clearance guide selection.

Typical applications
Door use
Factory gates
Opening condition
Large service openings
Selection focus
Industrial doors
Public selection data
Airflow
Air velocity 28 m/s; confirm exact industrial model before submittal use
Dimensions
900/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Industrial mounting; installation height 6.0-8.0 m
View series
F Centrifugal Air Curtain Series equipment view

Air curtain series

F Centrifugal Air Curtain Series

F centrifugal air curtain series for commercial entrances where 900-2000 mm width options, 3.5-5.0 m mounting-height ranges, controls, and model documents need selection before quoting.

Typical applications
Door use
Commercial doorways
Opening condition
High-end entries
Selection focus
Taller openings
Public selection data
Airflow
Air velocity 17 / 14 m/s high / low or 20 / 18 m/s by model; confirm exact model before submittal use
Dimensions
900/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted centrifugal unit; installation height 3.5-4.0 m or 4.0-5.0 m by model
View series

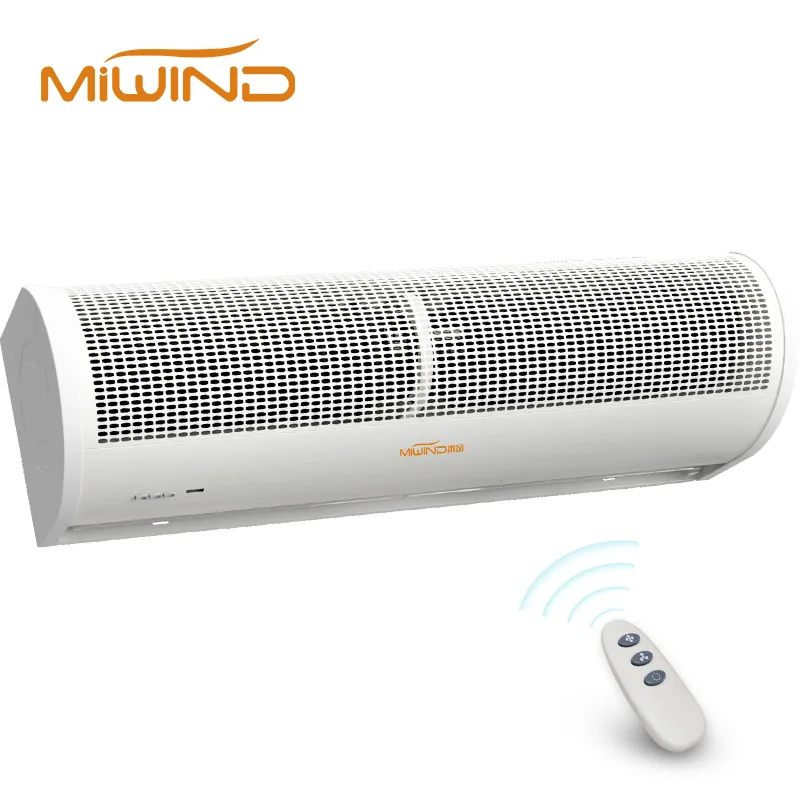

Pro D Commercial Air Curtain Series equipment view

Air curtain series

Pro D Commercial Air Curtain Series

Pro D commercial air curtain series for retail and hospitality entrances that need stronger controls, temperature-stability review, and current project documents.

Typical applications
Door use
Retail entrances
Opening condition
Hospitality entries
Selection focus
Control-focused projects
Public selection data
Airflow
Air velocity 13 / 11 m/s high / low; confirm exact airflow by model
Dimensions
900/1000/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted commercial unit; installation height 3.0-3.5 m
View series

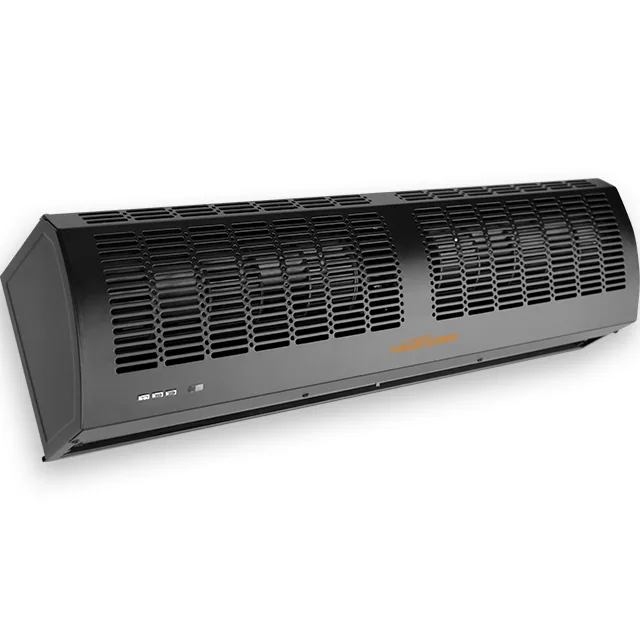

C Series Air Curtain equipment view

Air curtain series

C Series Air Curtain

C Series Air Curtain for value-focused commercial doorways where width, mounting height, voltage, controls, and current model documents should be checked before sizing.

Typical applications
Door use
Commercial entrances
Opening condition
Distributor review
Selection focus
General doorway separation
Public selection data
Airflow
Air velocity 13 / 11 m/s high / low; confirm exact airflow by model
Dimensions
900/1000/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted unit; installation height 3.0-3.5 m
View series
E Air Curtain Series equipment view

Air curtain series

E Air Curtain Series

E centrifugal air curtain series for commercial entrances where 900-2000 mm width options, 3.5-5.0 m mounting-height ranges, controls, and model documents need selection before quoting.

Typical applications
Door use
Commercial entrances
Opening condition
Distributor programs
Selection focus
Taller openings
Public selection data
Airflow
Air velocity 17 / 14 m/s high / low or 21 / 18 m/s by model; confirm exact model before submittal use
Dimensions
900/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Surface-mounted centrifugal unit; installation height 3.5-4.0 m or 4.0-5.0 m by model
View series
Cold Storage Air Curtain Series equipment view

Air curtain series

Cold Storage Air Curtain Series

cold storage air curtain product page for walk-in cooler doors, cold air curtain, cold store air curtain, humidity control curtain questions, air curtain freezer-adjacent openings, and cold-room doors where temperature split, door cycle rate, traffic, frost risk, humidity, and mounting clearance matter.

Typical applications
Door use
Cold-room doors
Opening condition
Freezer-adjacent openings
Selection focus
Temperature separation
Public selection data
Airflow
Air velocity 19.5 m/s; confirm exact cold-storage model before submittal use
Dimensions
1330/1430/1630/1930/2230/2430/2630/2830 mm available lengths; confirm inch dimensions
Mounting
Door-mounted air curtain; installation height 2.5-3.0 m
View series
Max D Industrial Air Curtain Series equipment view

Air curtain series

Max D Industrial Air Curtain Series

Max D industrial air curtain product page for very large factory openings and large factory doors where mounting height, exposure, voltage, controls, and performance language must be confirmed by model documents.

Typical applications
Door use
Large factory doors
Opening condition
Mega openings
Selection focus
Industrial energy-loss review
Public selection data
Airflow
Air velocity 17 / 14 m/s high / low or 21 / 18 m/s by model; confirm exact model before submittal use
Dimensions
900/1000/1200/1500/1800/2000 mm available lengths; confirm inch dimensions
Mounting
Industrial structural mounting; installation height 3.5-4.0 m or 4.0-5.0 m by model
View series

Selection data

Air Curtain Door Review

Opening geometry and operating conditions establish the series path before model-level data is compared.

Project data

  1. Measure finished door width, clear opening height, and available mounting space.
  2. Capture mounting height from finished floor to the planned air curtain discharge.
  3. Class the opening as exterior entry, conditioned separation, cold-room door, or service opening.

Documents

Product documents 1 available Series pages 17 series Model documents Request Certification and availability Confirm by model

Selection checks

Opening geometry Inches and finished-opening dimensions. Exposure condition Identify temperature split and door cycling. Electrical and controls Voltage before heat. Mounting detail Send photos when the header is constrained.

Opening matrix

Retail entrance
Door width, door height, mounting height, traffic frequency / Air curtain sizing calculator
Cold-room door
Door dimensions, room temperature, ambient temperature, door cycles / Cold-room series review
Restaurant or kitchen support
Door swing, kitchen adjacency, heat/odor context, makeup-air notes / Application review
Service opening
Opening size, exterior exposure, wind, controls, voltage / Series and model-data review
Interior separation
Conditioned zones, traffic, dust or odor transfer, noise limits / Selection worksheet
Next step The useful path keeps opening geometry, exposure, electrical requirements, and model-level data together.

FAQs

Technical FAQs

Should an air curtain be used at a delivery entrance?

When asking whether air curtains should be installed at the delivery entrance, collect opening width, traffic pattern, wind exposure, mounting height, voltage, and photos before choosing a series.

Can an air curtain replace a vestibule?

Project requirements vary by jurisdiction and code path. Air curtain guidance is a planning aid; final requirements belong with the project authority or design professional.

Should I choose heated or unheated?

Unheated models are common for separation and insect control. Heated models may fit comfort-driven entrances, but voltage, controls, and installation constraints need review.

What door measurements are needed first?

Use finished door width, clear opening height, mounting height, header clearance, and traffic pattern before comparing air curtain series.
