Air Curtains

X7 Cross-Flow Air Curtain Series

X7 Cross-Flow Air Curtain Series is a air curtains option for small storefronts, wholesale programs, general commercial doors and similar projects.

Start here

Start here when the project needs air curtains for small storefronts or wholesale programs. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

Seriesproduct overview Air Curtainsproduct family Documentsmodel documents

Typical uses 3 checks Key inputs Door width / Mounting height / Heated or unheated / Voltage Product documents 1 available Request model documents Model review

Small storefronts
Wholesale programs
General commercial doors

Request model documents

X7 Cross-Flow Air Curtain Series product view 1

X7 Series

X7 Cross-Flow Air Curtain

Cross-flow air curtain for small-to-medium storefronts where a practical wholesale-ready model is more important than a specialized mounting path.

X7 Cross-Flow Air Curtain should be reviewed around small storefronts, medium storefronts, distributor stock review, mounting conditions, electrical service, controls, and access for installation or service.

Use the visible product photos and model reference image to start the comparison, then confirm release documents before quoting, submittal, certification language, or final project use.

Key specs

Airflow air volume 1200-2700 m3/h by model; confirm exact airflow before submittal use Model check Voltage Confirm the US voltage option Model check Mounting Surface-mounted unit; verify header clearance and cabinet projection Model check

Typical uses

Small storefronts
Medium storefronts
Distributor stock review

Build notes

Cross-flow body for small-to-medium storefront coverage
Factory-direct and wholesale program details
Simple doorway selection before model data

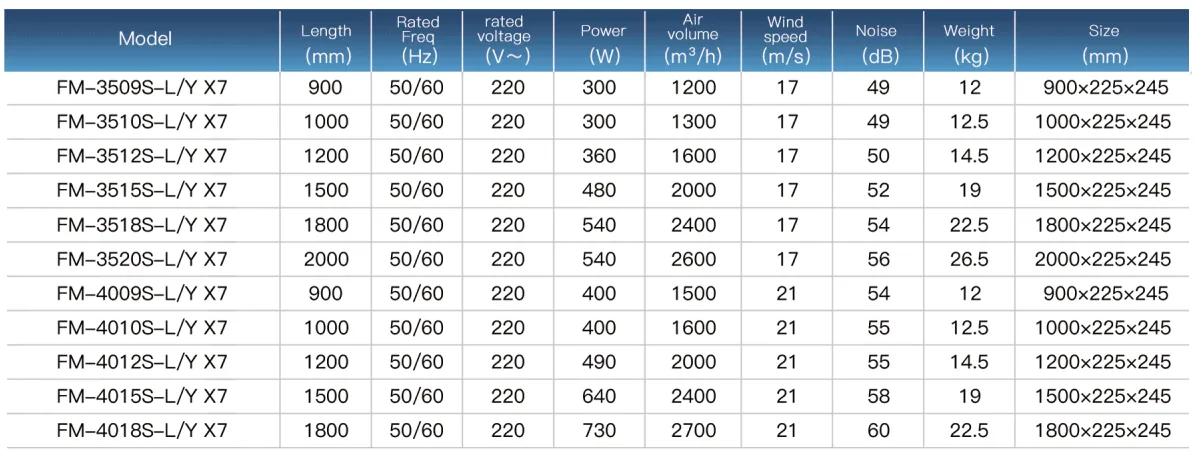

Supplied model table lists 900 / 1000 / 1200 / 1500 / 1800 / 2000 mm lengths, 17 or 21 m/s wind-speed classes, and 1200-2700 m3/h air volume by model

Check current model documents before quote or submittal use. Model data

Spec field	Selection value	Use boundary
Model number	X7 Series	Model identifier
Airflow	air volume 1200-2700 m3/h by model; confirm exact airflow before submittal use	Confirm by model
Voltage and phase	Confirm the US voltage option	Confirm by model
Power input	300-730 W by model length and class; confirm voltage and exact model power	Confirm by model
Sound rating	49-60 dB by model length and class; installed sound depends on mounting conditions	Project input
Dimensions	900/1000/1200/1500/1800/2000 x 225 x 245 mm model sizes; confirm inch dimensions	Confirm by model
Weight	Confirm shipping and installed weight	Confirm by model
Mounting type	Surface-mounted unit; verify header clearance and cabinet projection	Confirm by model
Warranty	Confirm warranty terms by product and sales channel	Confirm by model

Source parameter	Published source value	Selection use
Air volume	1200-2700 m3/h by model	Use as a source airflow range; confirm exact model data before submittal use
Wind speed	17 m/s or 21 m/s by model class	Use as a source velocity reference; confirm selected class before submittal use
Motor power	300-730 W by model length and class	Confirm voltage and exact model power before quotation
Noise level	49-60 dB by model length and class	Use as a source sound range; installed sound depends on mounting conditions
Available lengths	900 / 1000 / 1200 / 1500 / 1800 / 2000 mm	Match the unit length to finished door width before requesting documents
Unit size	225 x 245 mm section with length by model	Check cabinet depth, projection, and header clearance before layout use

Equipment photos

Equipment views that change selection

Use the photos to confirm the visible form factor, access side, mounting details, and service points before reading the longer selection notes.

X7 Cross-Flow Air Curtain Series equipment detail 1 — **Product view**Review the form factor here; confirm performance and documents separately.

Typical uses

Review doorway width, clear opening height, traffic pattern, wind exposure, and whether the entrance is retail, restaurant, cold-room, or service-door use. Treat a restaurant entrance air curtain with frequent door traffic as a separate review from a cold-room or low-traffic interior opening.

Selection boundary

Review this series when the project needs a surface-mounted door air curtain. Move to another series when the opening needs a different motor class, heated construction, recessed mounting, cold-storage duty, or wider industrial coverage.

Installation review

Check header clearance, bracket position, electrical access, door sensor expectations, and discharge direction before treating the model as ready for ordering. Photos of the doorway usually improve the first review.

Parameter reading

Read airflow, velocity, sound, width, voltage, and control notes together. A door-width match alone is not enough when comfort, insect control, heating, or cold-room separation is part of the decision.

Sizing Inputs

Open doors create comfort complaints, insect entry, dust movement, and temperature swings that need doorway-specific review.

Start with the visible model cards above, then collect the few site conditions that change equipment fit before requesting final model documents.

Start with finished door width, finished door height, and mounting height.
Confirm whether the opening is indoor-to-outdoor, conditioned-to-unconditioned, or cold-room service.
Review voltage, heating preference, control method, and available mounting space before model selection.

Door widthMounting heightHeated or unheatedVoltageAir velocity or airflow dataSound rating where available
