Cabinet Centrifugal Fan Series

Ventilation Fan

Cabinet Centrifugal Fan fits inline cabinet fan and higher-pressure ducted fan projects where target CFM, static pressure, fan curve, duct route, access side, and voltage must travel into current model documents.

  • Industrial airflow
  • Equipment rooms
  • High-pressure utility ventilation
Typical uses
3 checks
Product documents
1 available
Request model documents
Model review
Request model documents

Models

Choose the model that matches the opening, airflow duty, mounting condition, and electrical option.

Cabinet Centrifugal Fan Series

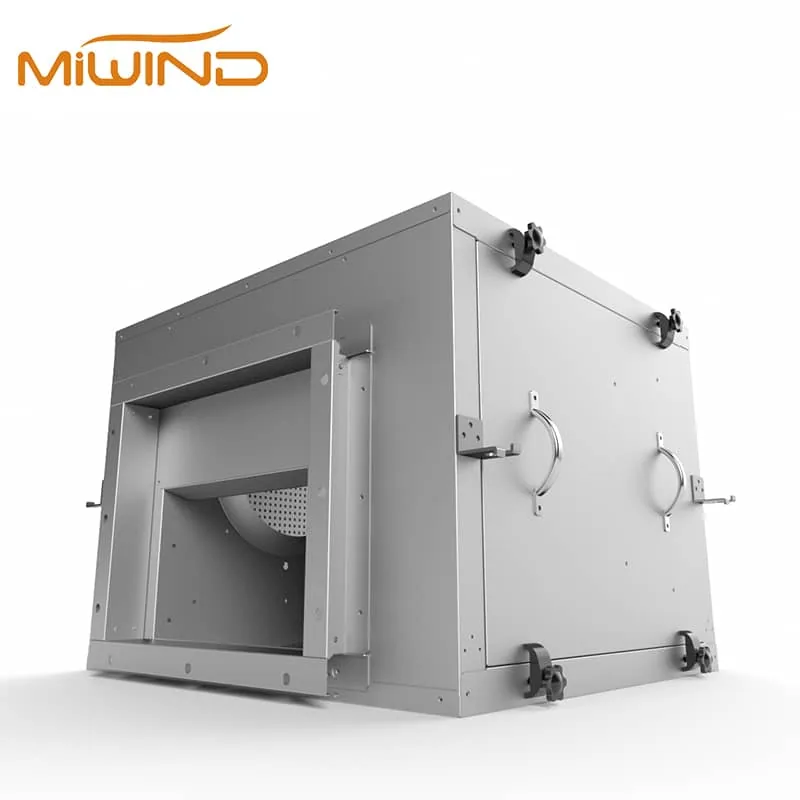

Cabinet Centrifugal Fan

Cabinet centrifugal fan for ducted utility and equipment-room airflow. Compare it by target CFM, static pressure, fan curve, duct route, service access, and model-level electrical data.

Airflow
range is 2000-25000 CMH; convert and confirm exact CFMModel check
Voltage
1-phase or 3-phase options available; confirm US electrical fitModel check
Mounting
Cabinet / utility fan; confirm service access and clearanceModel check
Applications and build notes

Typical uses

  • Industrial ventilation
  • Equipment rooms
  • Utility airflow

Build notes

  • Centrifugal fan type for stronger pressure check
  • airflow range is 2000-25000 CMH
  • Cabinet fan request should include target CFM, static pressure, fan curve, duct route, service access, voltage, controls, and current model documents.
  • 1-phase or 3-phase electrical option; confirm US electrical fit

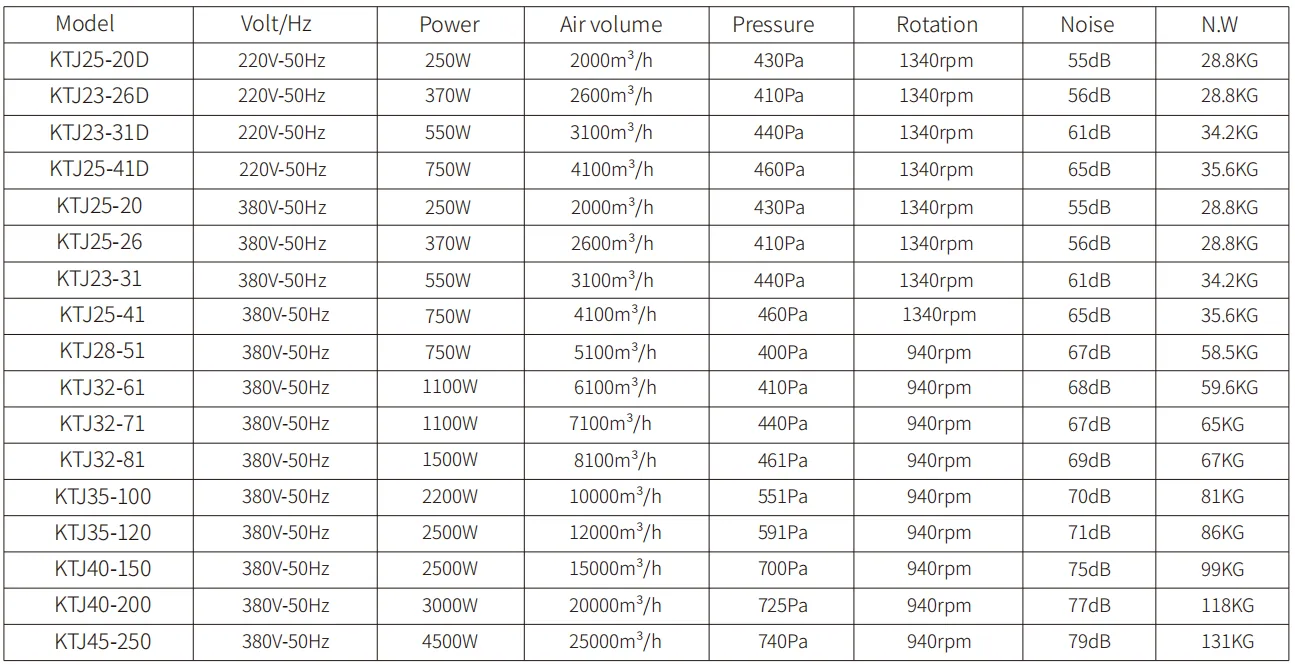

Model dataCheck current model documents before quote or submittal use.

Applications and installation

For fan model documents, prepare room type, target CFM or ACH, duct sketch, approximate equivalent length, voltage, control expectation, mounting location, and service-access constraints.

Typical uses

Review bathrooms, storage rooms, light-commercial rooms, support spaces, and ducted ventilation paths by required CFM, duct length, fittings, discharge location, and sound sensitivity.

Product fit

Check this series when a ducted fan path is appropriate. Move to cabinet or utility fan selection when higher pressure, larger service access, enclosure needs, or a different fan construction is driving the decision.

Installation

Confirm duct diameter, equivalent length, elbows, backdraft protection, service clearance, mounting orientation, and wiring or speed-control expectations before selecting a fan body.

Parameters

Read CFM together with static pressure, sound, motor type, power input, and duct size. A free-air CFM value is only a starting point when the installed duct path adds resistance.

Sizing inputs

Ducted systems need a fan selected around CFM, duct path, pressure loss, noise sensitivity, and service access.

  • Gather target CFM, duct diameter, duct length, elbows, filters, and expected static pressure.
  • Avoid selecting by duct diameter alone.
  • Confirm noise, service access, and controls before model selection.
  • Airflow CFM
  • Static pressure
  • Duct size
  • Motor type
  • Voltage
  • Sound rating where available
