Wall Mounted Exhaust Fan Series

Exhaust Fans

Start here when the project needs exhaust fans for wall exhaust or bathrooms. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

  • Wall exhaust
  • Bathrooms
  • Utility rooms
Typical uses
3 checks
Product documents
1 available
Request model documents
Model review
Request model documents

Models

Choose the model that matches the opening, airflow duty, mounting condition, and electrical option.

Wall Exhaust Series

Wall Mounted Exhaust Fan

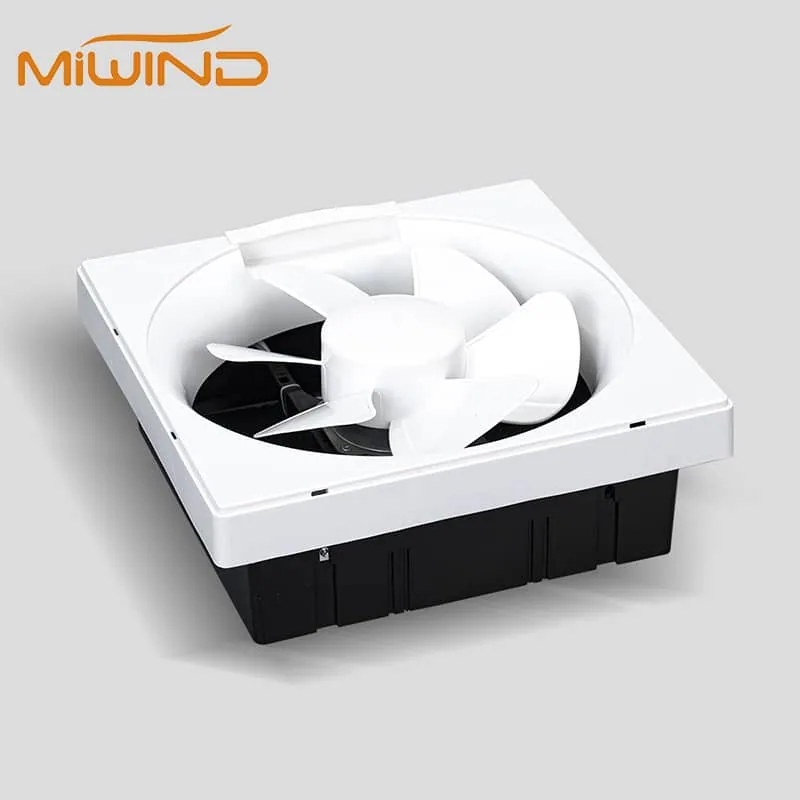

Wall mounted exhaust fan for utility rooms, bathrooms, side wall exhaust fan projects, and support-room exhaust where grille choice, automatic shutter behavior, wiring, duct path, and ABS housing need review.

Airflow

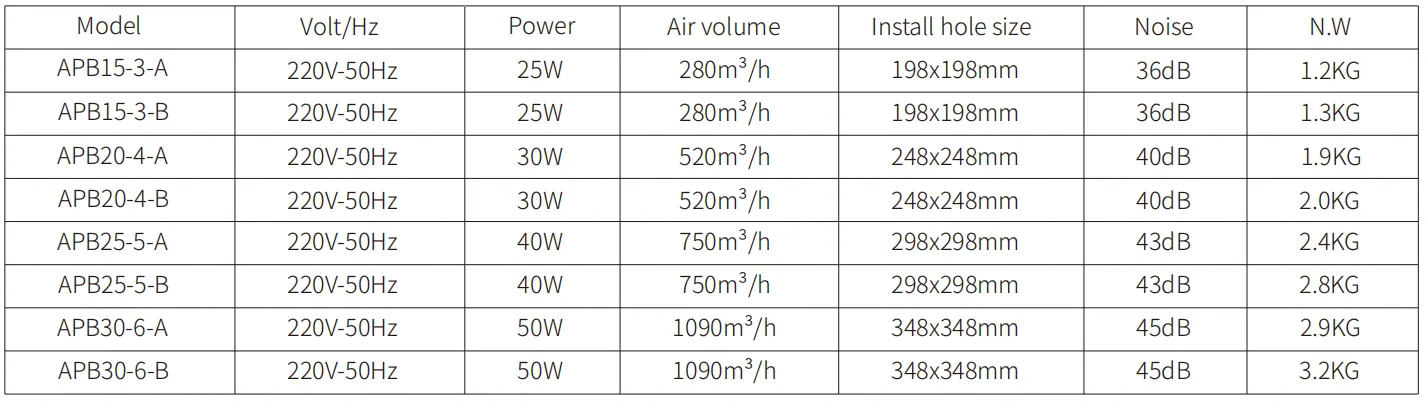

air volume 280 / 520 / 750 / 1090 m3/h by model class; confirm exact model before submittal useModel check
Voltage
Confirm the US voltage optionModel check
Mounting
Wall mountedProject input
Applications and build notes

Typical uses

  • Wall exhaust
  • Utility-room ventilation
  • Bathroom exhaust

Build notes

  • 6/8/10/12 inch size range

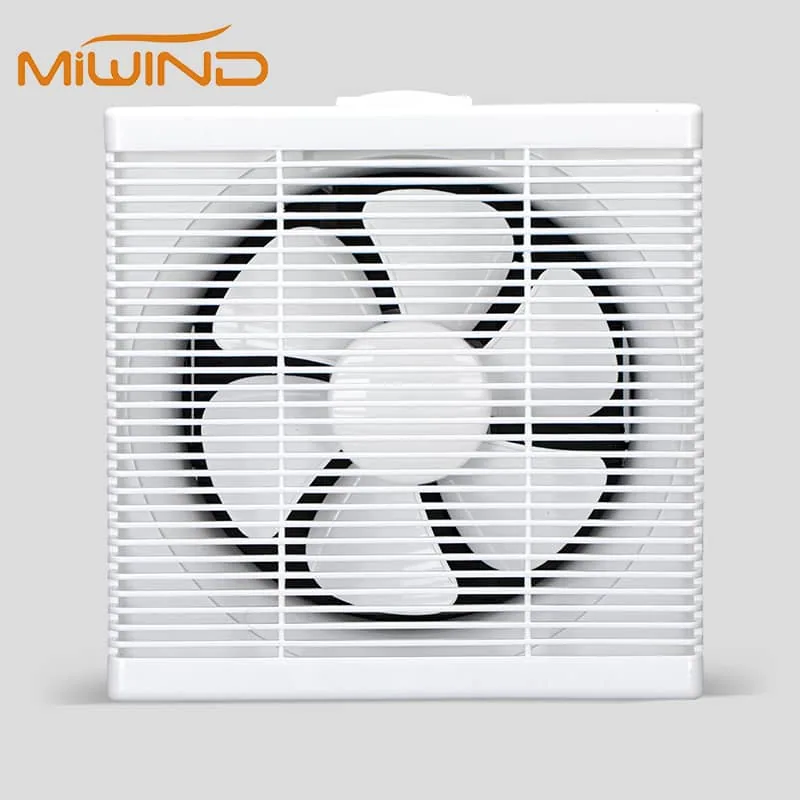

  • Optional grille details
  • Check wall exhaust fan model documents for shutter wiring and grille details
  • Automatic shutter mechanism needs wiring and installation check
Model dataCheck current model documents before quote or submittal use.

Applications and installation

For review, prepare room size, target CFM or ACH, duct length, termination location, noise expectation, voltage, controls, and model-document needs.

Typical uses

Review bathrooms, utility rooms, storage rooms, support spaces, and wall or ceiling exhaust points by required CFM, duct path, noise target, grille location, and discharge route.

Product fit

Review this series when the room needs direct exhaust equipment. Move to inline duct fans when the fan must sit in the duct route, or to fresh-air systems when make-up or supply air is part of the project.

Installation

Confirm ceiling or wall construction, duct diameter, backdraft path, service access, switch or sensor control, and whether the room is noise-sensitive before comparing sizes.

Parameters

Read CFM, sound rating, voltage, dimensions, mounting method, and duct guidance together. A quiet fan in a poor duct route can still underperform or sound louder than expected.

Sizing inputs

Exhaust projects often start with a CFM guess and miss duct, noise, voltage, or certification requirements.

  • Room area and ceiling height provide planning-level sizing details.
  • Review duct length, elbows, and noise sensitivity before fan selection.
  • Residential applications may require specific certification or efficiency documents.
  • CFM
  • Sones
  • Duct size
  • Voltage
  • Mounting type
  • Controls
