Air Curtains

S Heavy-Duty Air Curtain Series

Heavy-duty air curtain line for larger openings, dust separation, and temperature-change control.

Seriesselection page Air Curtainsproduct family Dataseries sheet
  • Large doors
  • Service openings
  • Dust and temperature separation

Technical parameters

S Heavy-Duty Air Curtain technical parameters

Check model-level values and factory reference material before comparing application fit, mounting, controls, or release documents.

Spec field Selection value Use boundary
Model number S Series Model identifier
Airflow 1400-4000 m3/h high speed; 1100-3200 m3/h low speed Project input
Voltage and phase 220-240 V, 50/60 Hz model table; confirm US electrical option Confirm by model
Power input 92-210 W by model and speed Project input
Sound rating 40-54 dB by model and speed Project input
Dimensions 900/1000/1200/1500/1800/2000 x 158 x 184 mm sizes Project input
Weight 7.5-14.7 kg net weight; 8.5-15.8 kg gross weight Project input
Mounting type Surface-mounted unit; mounting height 2.5-3.0 m Project input
Controls Switch and remote variants listed as FM-12xxS and FM-12xxS/Y Project input
Warranty Confirm warranty terms by product and sales channel Confirm by model

Model table

S Air Curtain Model Table

SwitchRemoteVoltageFrequencyPower H/LAir volume H/LAir velocity H/LNoise H/LN.W.G.W.Unit sizeCarton sizeMounting height
FM-1209SFM-1209S/Y220-240 V50/60 Hz115 / 92 W1400 / 1100 m3/h11 / 9 m/s50 / 40 dB7.5 kg8.5 kg900 x 158 x 184 mm950 x 210 x 240 mm2.5-3.0 m
FM-1210SFM-1210S/Y220-240 V50/60 Hz116 / 93 W1700 / 1400 m3/h11 / 9 m/s51 / 41 dB8.0 kg9.0 kg1000 x 158 x 184 mm1050 x 210 x 240 mm2.5-3.0 m
FM-1212SFM-1212S/Y220-240 V50/60 Hz120 / 96 W2000 / 1800 m3/h11 / 9 m/s51 / 41 dB9.5 kg10.5 kg1200 x 158 x 184 mm1250 x 210 x 240 mm2.5-3.0 m
FM-1215SFM-1215S/Y220-240 V50/60 Hz150 / 120 W2800 / 2200 m3/h11 / 9 m/s52 / 42 dB11.7 kg12.8 kg1500 x 158 x 184 mm1550 x 210 x 240 mm2.5-3.0 m
FM-1218SFM-1218S/Y220-240 V50/60 Hz210 / 168 W3600 / 2900 m3/h11 / 9 m/s53 / 43 dB13.6 kg14.6 kg1800 x 158 x 184 mm1850 x 210 x 240 mm2.5-3.0 m
FM-1220SFM-1220S/Y220-240 V50/60 Hz210 / 168 W4000 / 3200 m3/h11 / 9 m/s54 / 44 dB14.7 kg15.8 kg2000 x 158 x 184 mm2050 x 210 x 240 mm2.5-3.0 m

Factory reference

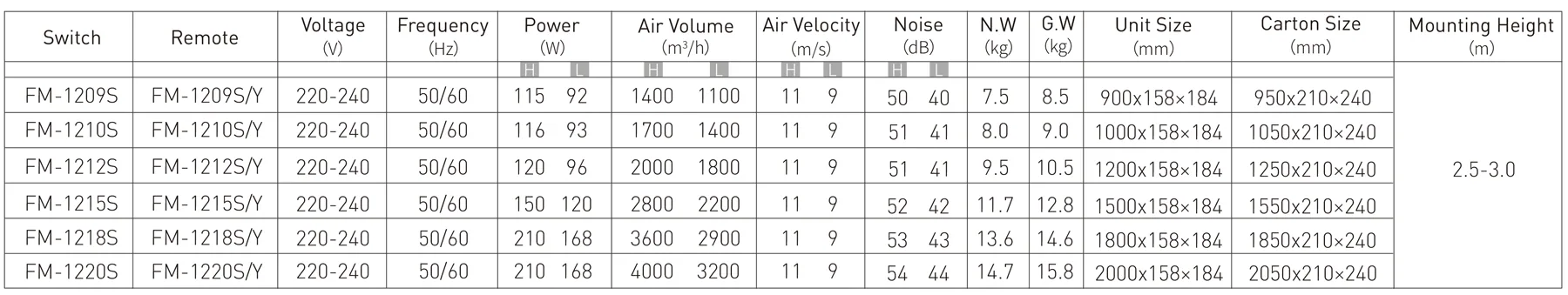

Original parameter image

S Heavy-Duty Air Curtain model reference table

Factory model reference for early comparison. Confirm the current project file before submittal or release use.

Model summary

S Heavy-Duty Air Curtain Series selection sheet

Compare the product body, core data, application fit, and construction notes before opening the model detail.

S Heavy-Duty Air Curtain product image

S Series

S Heavy-Duty Air Curtain

S series air curtain for commercial openings that need a slim metal body, low-noise operation, remote-control option, and published model sizes from 900 mm to 2000 mm.

S Heavy-Duty Air Curtain should be reviewed around supermarkets, hotels, offices, mounting conditions, electrical service, controls, and access for installation or service.

Core data
Airflow 1400-4000 m3/h high speed; 1100-3200 m3/h low speed Project input Voltage 220-240 V, 50/60 Hz model table; confirm US electrical option Model review Mounting Surface-mounted unit; mounting height 2.5-3.0 m Project input
Application fit
  • Supermarkets
  • Hotels
  • Offices
  • Retail stores
Build notes
  • Slim powder-coated metal casing for visible commercial entrances
  • Remote-control variants shown in the model table
  • Adjustable air pattern for doorway commissioning review
  • Model table includes six lengths from 900 mm to 2000 mm
Review model data before quote or submittal use. View details
