Air Curtains

A5 Restaurant Air Curtain Series

A5 Restaurant Air Curtain Series is a air curtains option for restaurant doors, food service entrances, oem programs and similar projects.

Start here

Start here when the project needs air curtains for restaurant doors or food service entrances. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

Seriesproduct overview Air Curtainsproduct family Documentsmodel documents
Typical uses 3 checks Key inputs Door width / Mounting height / Heated or unheated / Voltage Product documents 1 available Request model documents Model review
  • Restaurant doors
  • Food service entrances
  • OEM programs
Request model documents

Series options

Compare A5 Restaurant Air Curtain Series options

Check photos, key specs, typical uses, and document needs before requesting current model documents.

A5 Restaurant Air Curtain equipment view

A5 Series

A5 Restaurant Air Curtain

A5 cross-flow air curtain for restaurant doors where comfort, odor separation, and straightforward installation are the main selection points.

A5 Restaurant Air Curtain should be reviewed around restaurant doors, cafes, food service entries, mounting conditions, electrical service, controls, and access for installation or service.

Use the visible product photos and model reference image to start the comparison, then confirm release documents before quoting, submittal, certification language, or final project use.

Key specs
Airflow Air velocity 11 / 9 m/s high / low; confirm exact airflow by model Model check Voltage Confirm the US voltage option Model check Mounting Surface-mounted restaurant entrance unit; installation height 2.5-3.0 m Project input
Typical uses
  • Restaurant doors
  • Cafes
  • Food service entries
Build notes
  • Restaurant-door positioning
  • Gentle, uniform airflow for visible dining entrances
  • Simplified installation and maintenance path
  • Supplied product text lists 900 / 1200 / 1500 / 1800 / 2000 mm available lengths, 2.5-3.0 m installation height, and 140-245 W motor power by model length
Check current model documents before quote or submittal use. Model data

Technical parameters

A5 Restaurant Air Curtain technical parameters

The first model table shows how to read available values before final confirmation on the exact model page.

Spec field Selection value Use boundary
Model number A5 Series Model identifier
Airflow Air velocity 11 / 9 m/s high / low; confirm exact airflow by model Confirm by model
Voltage and phase Confirm the US voltage option Confirm by model
Power input 140-245 W by model length; confirm voltage and exact model power Confirm by model
Dimensions 900/1200/1500/1800/2000 mm available lengths; confirm inch dimensions Confirm by model
Weight Confirm shipping and installed weight Confirm by model
Mounting type Surface-mounted restaurant entrance unit; installation height 2.5-3.0 m Project input
Warranty Confirm warranty terms by product and sales channel Confirm by model

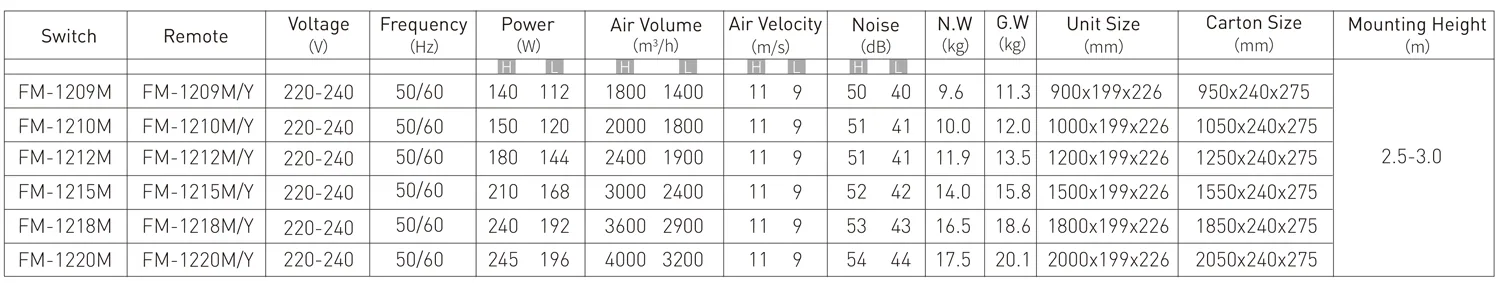

Model table

A5 Restaurant Air Curtain Source Parameters

Source parameterPublished source valueSelection use
Air velocity11 / 9 m/s high / lowUse as a source velocity reference; confirm exact airflow by model before submittal use
Installation height2.5-3.0 mCheck against finished door height, mounting height, and header clearance
Motor power140-245 W by model lengthConfirm voltage and exact model power before quotation
Available lengths900 / 1200 / 1500 / 1800 / 2000 mmMatch to finished door width before requesting model documents

Equipment photos

Equipment views that change selection

Use the photos to confirm the visible form factor, access side, mounting details, and service points before reading the longer selection notes.

A5 Restaurant Air Curtain Series equipment detail 1
Product viewReview the form factor here; confirm performance and documents separately.

Applications

Applications

For submittal documents or current model documents, prepare door dimensions, mounting height, voltage, heated or unheated preference, controls, quantity, and any certification or document requirement by exact model.

Typical uses

Review doorway width, clear opening height, traffic pattern, wind exposure, and whether the entrance is retail, restaurant, cold-room, or service-door use. Treat a restaurant entrance air curtain with frequent door traffic as a separate review from a cold-room or low-traffic interior opening.

Selection boundary

Review this series when the project needs a surface-mounted door air curtain. Move to another series when the opening needs a different motor class, heated construction, recessed mounting, cold-storage duty, or wider industrial coverage.

Installation review

Check header clearance, bracket position, electrical access, door sensor expectations, and discharge direction before treating the model as ready for ordering. Photos of the doorway usually improve the first review.

Parameter reading

Read airflow, velocity, sound, width, voltage, and control notes together. A door-width match alone is not enough when comfort, insect control, heating, or cold-room separation is part of the decision.

Sizing Inputs

Open doors create comfort complaints, insect entry, dust movement, and temperature swings that need doorway-specific review.

Start with the visible model cards above, then collect the few site conditions that change equipment fit before requesting final model documents.

  • Start with finished door width, finished door height, and mounting height.
  • Confirm whether the opening is indoor-to-outdoor, conditioned-to-unconditioned, or cold-room service.
  • Review voltage, heating preference, control method, and available mounting space before model selection.
Door widthMounting heightHeated or unheatedVoltageAir velocity or airflow dataSound rating where available
