Air Curtains

Max D Industrial Air Curtain Series

Max D Industrial Air Curtain Series is a air curtains option for large factory doors, mega openings, industrial energy-loss review and similar projects.

Start here

Start here when the project needs air curtains for large factory doors or mega openings. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

Seriesproduct overview Air Curtainsproduct family Documentsmodel documents
Typical uses 3 checks Key inputs Door width / Mounting height / Heated or unheated / Voltage Product documents 1 available Request model documents Model review
  • Large factory doors
  • Mega openings
  • Industrial energy-loss review
Request model documents

Series options

Compare Max D Industrial Air Curtain Series options

Check photos, key specs, typical uses, and document needs before requesting current model documents.

Max D Industrial Air Curtain equipment view

Max D Series

Max D Industrial Air Curtain

Max D industrial air curtain for very large factory openings where airflow capacity, door width, environmental exposure, and structural mounting need current model documents.

Max D Industrial Air Curtain should be reviewed around mega factory doors, large industrial openings, heavy-duty doorway separation, mounting conditions, electrical service, controls, and access for installation or service.

Use the visible product photos and model reference image to start the comparison, then confirm release documents before quoting, submittal, certification language, or final project use.

Key specs
Airflow Air velocity 17 / 14 m/s high / low or 21 / 18 m/s by model; confirm exact model before submittal use Model check Voltage Confirm the US voltage option Model check Mounting Industrial structural mounting; installation height 3.5-4.0 m or 4.0-5.0 m by model Project input
Typical uses
  • Mega factory doors
  • Large industrial openings
  • Heavy-duty doorway separation
Build notes
  • Large-door industrial positioning
  • High-airflow and sealed-construction details stay tied to current model documents
  • Check the large factory door air curtain model documents before quoting performance language
  • Use structural mounting, exposure, and service access in the first review
Check current model documents before quote or submittal use. Model data

Technical parameters

Max D Industrial Air Curtain technical parameters

The first model table shows how to read available values before final confirmation on the exact model page.

Spec field Selection value Use boundary
Model number Max D Series Model identifier
Airflow Air velocity 17 / 14 m/s high / low or 21 / 18 m/s by model; confirm exact model before submittal use Confirm by model
Voltage and phase Confirm the US voltage option Confirm by model
Power input 345-1036 W by model length; confirm voltage and exact model power Confirm by model
Dimensions 900/1000/1200/1500/1800/2000 mm available lengths; confirm inch dimensions Confirm by model
Weight Confirm shipping and installed weight Confirm by model
Mounting type Industrial structural mounting; installation height 3.5-4.0 m or 4.0-5.0 m by model Project input
Warranty Confirm warranty terms by product and sales channel Confirm by model

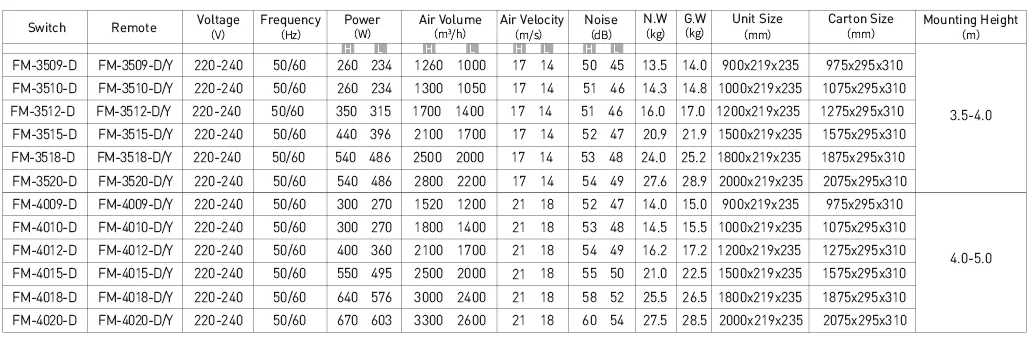

Model table

Max D Air Curtain Source Parameters

Source parameterPublished source valueSelection use
Air velocity17 / 14 m/s high / low or 21 / 18 m/s by modelUse as a source velocity range; confirm exact model before submittal use
Installation height3.5-4.0 m or 4.0-5.0 m by modelCheck against finished opening height, mounting height, and exposure
Motor power345-1036 W by model lengthConfirm voltage and exact model power before quotation
Available lengths900 / 1000 / 1200 / 1500 / 1800 / 2000 mmMatch the unit length to finished door width before requesting documents

Equipment photos

Equipment views that change selection

Use the photos to confirm the visible form factor, access side, mounting details, and service points before reading the longer selection notes.

Max D Industrial Air Curtain Series equipment detail 1
Product viewReview the form factor here; confirm performance and documents separately.

Applications

Applications

For submittal documents or current model documents, prepare door dimensions, mounting height, voltage, heated or unheated preference, controls, quantity, and any certification or document requirement by exact model.

Typical uses

Review doorway width, clear opening height, traffic pattern, wind exposure, and whether the entrance is retail, restaurant, cold-room, or service-door use. Treat a restaurant entrance air curtain with frequent door traffic as a separate review from a cold-room or low-traffic interior opening.

Selection boundary

Review this series when the project needs a surface-mounted door air curtain. Move to another series when the opening needs a different motor class, heated construction, recessed mounting, cold-storage duty, or wider industrial coverage.

Installation review

Check header clearance, bracket position, electrical access, door sensor expectations, and discharge direction before treating the model as ready for ordering. Photos of the doorway usually improve the first review.

Parameter reading

Read airflow, velocity, sound, width, voltage, and control notes together. A door-width match alone is not enough when comfort, insect control, heating, or cold-room separation is part of the decision.

Sizing Inputs

Open doors create comfort complaints, insect entry, dust movement, and temperature swings that need doorway-specific review.

Start with the visible model cards above, then collect the few site conditions that change equipment fit before requesting final model documents.

  • Start with finished door width, finished door height, and mounting height.
  • Confirm whether the opening is indoor-to-outdoor, conditioned-to-unconditioned, or cold-room service.
  • Review voltage, heating preference, control method, and available mounting space before model selection.
Door widthMounting heightHeated or unheatedVoltageAir velocity or airflow dataSound rating where available
