Pro D Commercial Air Curtain Series

Air Curtains

Start here when the project needs air curtains for retail entrances or hospitality entries. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

  • Retail entrances
  • Hospitality entries
  • Control-focused projects
Typical uses
3 checks
Product documents
1 available
Request model documents
Model review
Request model documents

Models

Choose the model that matches the opening, airflow duty, mounting condition, and electrical option.

Pro D Series

Pro D Commercial Air Curtain

Pro D commercial air curtain for projects that need a D-series body with a stronger control and comfort selection path.

Airflow
Air velocity 13 / 11 m/s high / low; confirm exact airflow by modelModel check
Voltage
Confirm the US voltage optionModel check
Mounting
Surface-mounted commercial unit; installation height 3.0-3.5 mProject input
Applications and build notes

Typical uses

  • Retail entrances
  • Hotels
  • Commercial buildings

Build notes

  • Commercial D-series upgrade path
  • Control-focused positioning
  • Use current model documents before publishing IoT, certification, or energy-stability claims
  • Good candidate for hospitality and retail doorway selection
Model dataCheck current model documents before quote or submittal use.

Applications and installation

For submittal documents or current model documents, prepare door dimensions, mounting height, voltage, heated or unheated preference, controls, quantity, and any certification or document requirement by exact model.

Typical uses

Review doorway width, clear opening height, traffic pattern, wind exposure, and whether the entrance is retail, restaurant, cold-room, or service-door use. Treat a restaurant entrance air curtain with frequent door traffic as a separate review from a cold-room or low-traffic interior opening.

Product fit

Review this series when the project needs a surface-mounted door air curtain. Move to another series when the opening needs a different motor class, heated construction, recessed mounting, cold-storage duty, or wider industrial coverage.

Installation

Check header clearance, bracket position, electrical access, door sensor expectations, and discharge direction before treating the model as ready for ordering. Photos of the doorway usually improve the first review.

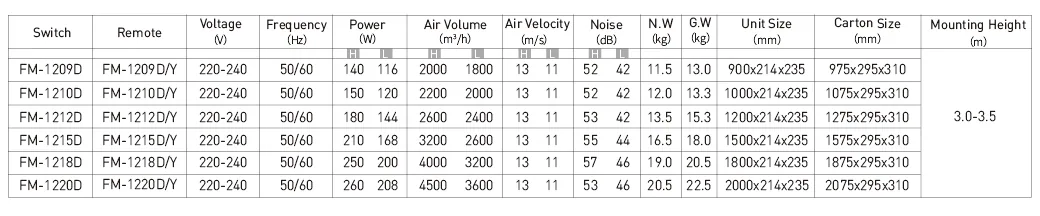

Parameters

Read airflow, velocity, sound, width, voltage, and control notes together. A door-width match alone is not enough when comfort, insect control, heating, or cold-room separation is part of the decision.

Sizing inputs

Open doors create comfort complaints, insect entry, dust movement, and temperature swings that need doorway-specific review.

  • Start with finished door width, finished door height, and mounting height.
  • Confirm whether the opening is indoor-to-outdoor, conditioned-to-unconditioned, or cold-room service.
  • Review voltage, heating preference, control method, and available mounting space before model selection.
  • Door width
  • Mounting height
  • Heated or unheated
  • Voltage
  • Air velocity or airflow data
  • Sound rating where available
