Air Curtains

Industrial Air Curtain Series

Industrial Air Curtain Series is a air curtains option for factory gates, large service openings, industrial doors and similar projects.

Start here

Start here when the project needs air curtains for factory gates or large service openings. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

Seriesproduct overview Air Curtainsproduct family Documentsmodel documents
Typical uses 3 checks Key inputs Door width / Mounting height / Heated or unheated / Voltage Product documents 1 available Request model documents Model review
  • Factory gates
  • Large service openings
  • Industrial doors
Request model documents

Series options

Compare Industrial Air Curtain Series options

Check photos, key specs, typical uses, and document needs before requesting current model documents.

Industrial Air Curtain equipment view

Industrial Series

Industrial Air Curtain

Industrial air curtain for factory gates and large service openings where dust, humidity, temperature swing, mounting structure, and service clearance shape the selection.

Industrial Air Curtain should be reviewed around factory gates, industrial entrances, large service openings, mounting conditions, electrical service, controls, and access for installation or service.

Use the visible product photos and model reference image to start the comparison, then confirm release documents before quoting, submittal, certification language, or final project use.

Key specs
Airflow Air velocity 28 m/s; confirm exact industrial model before submittal use Model check Voltage text lists 380 V three-phase motor; confirm US electrical option Model check Mounting Industrial mounting; installation height 6.0-8.0 m Project input
Typical uses
  • Factory gates
  • Industrial entrances
  • Large service openings
Build notes
  • Reinforced industrial body for large service openings
  • Higher-velocity air barrier details for factory gates
  • Harsh-condition wording should stay tied to current model documents
  • Factory door request should include opening width, mounting height, traffic pattern, exposure, dust, humidity, voltage, controls, and service access for current document checks
Check current model documents before quote or submittal use. Model data

Technical parameters

Industrial Air Curtain technical parameters

The first model table shows how to read available values before final confirmation on the exact model page.

Spec field Selection value Use boundary
Model number Industrial Series Model identifier
Airflow Air velocity 28 m/s; confirm exact industrial model before submittal use Confirm by model
Voltage and phase text lists 380 V three-phase motor; confirm US electrical option Confirm by model
Power input 1350-3300 W by model length; confirm voltage and exact model power Confirm by model
Dimensions 900/1200/1500/1800/2000 mm available lengths; confirm inch dimensions Confirm by model
Weight Confirm shipping and installed weight Confirm by model
Mounting type Industrial mounting; installation height 6.0-8.0 m Project input
Warranty Confirm warranty terms by product and sales channel Confirm by model

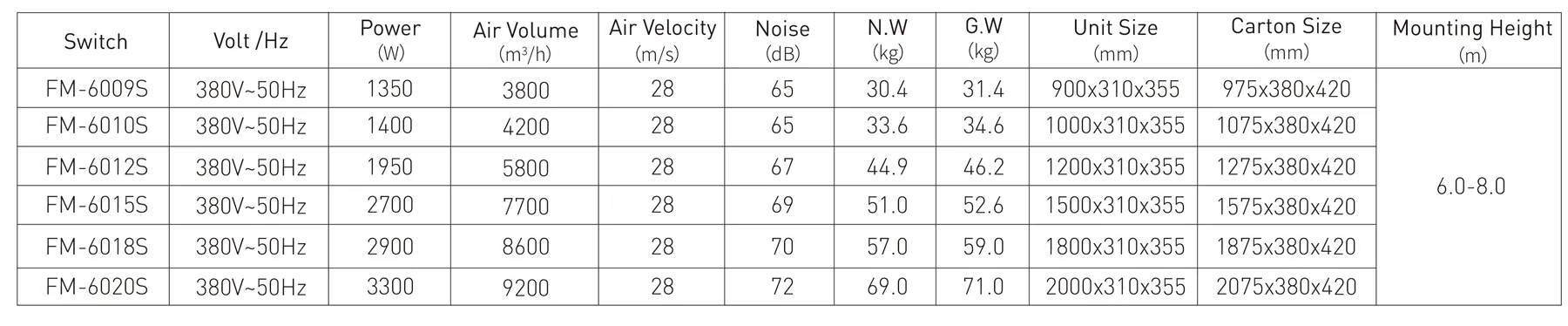

Model table

Industrial Air Curtain Source Parameters

Source parameterPublished source valueSelection use
Air velocity28 m/sUse as a source velocity reference; confirm exact industrial model before submittal use
Installation height6.0-8.0 mCheck structure, finished opening height, mounting height, and service access
Motor power1350-3300 W by model lengthConfirm three-phase electrical service and exact model power before quotation
Available lengths900 / 1200 / 1500 / 1800 / 2000 mmMatch the unit length to finished door width before requesting documents

Equipment photos

Equipment views that change selection

Use the photos to confirm the visible form factor, access side, mounting details, and service points before reading the longer selection notes.

Industrial Air Curtain Series equipment detail 1
Industrial housingLarge openings need exact mounting height, duty, power, and documents.

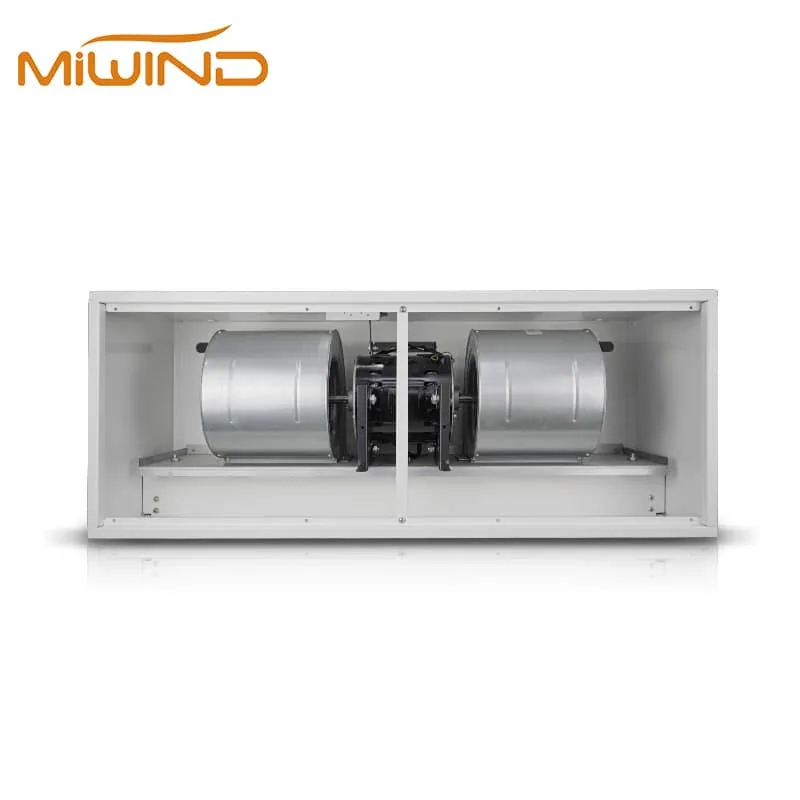

Industrial Air Curtain Series equipment detail 2
Side profileCheck depth and service clearance for factory or service-door use.

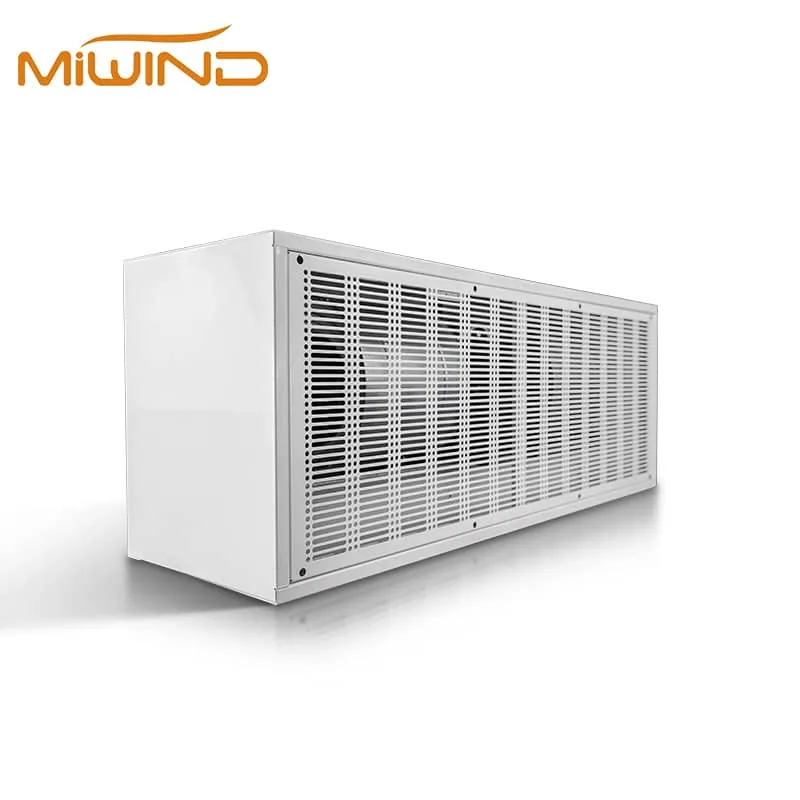

Industrial Air Curtain Series equipment detail 3
Blower detailFan construction is a discussion point; performance still requires model data.

Applications

Applications

For submittal documents or current model documents, prepare door dimensions, mounting height, voltage, heated or unheated preference, controls, quantity, and any certification or document requirement by exact model.

Typical uses

Review doorway width, clear opening height, traffic pattern, wind exposure, and whether the entrance is retail, restaurant, cold-room, or service-door use. Treat a restaurant entrance air curtain with frequent door traffic as a separate review from a cold-room or low-traffic interior opening.

Selection boundary

Review this series when the project needs a surface-mounted door air curtain. Move to another series when the opening needs a different motor class, heated construction, recessed mounting, cold-storage duty, or wider industrial coverage.

Installation review

Check header clearance, bracket position, electrical access, door sensor expectations, and discharge direction before treating the model as ready for ordering. Photos of the doorway usually improve the first review.

Parameter reading

Read airflow, velocity, sound, width, voltage, and control notes together. A door-width match alone is not enough when comfort, insect control, heating, or cold-room separation is part of the decision.

Sizing Inputs

Open doors create comfort complaints, insect entry, dust movement, and temperature swings that need doorway-specific review.

Start with the visible model cards above, then collect the few site conditions that change equipment fit before requesting final model documents.

  • Start with finished door width, finished door height, and mounting height.
  • Confirm whether the opening is indoor-to-outdoor, conditioned-to-unconditioned, or cold-room service.
  • Review voltage, heating preference, control method, and available mounting space before model selection.
Door widthMounting heightHeated or unheatedVoltageAir velocity or airflow dataSound rating where available
