Air Curtains

Ceiling Mounted Air Curtain Series

Ceiling Mounted Air Curtain Series is a air curtains option for overhead mounting, recessed ceiling openings, constrained headers and similar projects.

Start here

Start here when the project needs air curtains for overhead mounting or recessed ceiling openings. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

Seriesproduct overview Air Curtainsproduct family Documentsmodel documents
Typical uses 3 checks Key inputs Door width / Mounting height / Heated or unheated / Voltage Product documents 1 available Request model documents Model review
  • Overhead mounting
  • Recessed ceiling openings
  • Constrained headers
Request model documents

Series options

Compare Ceiling Mounted Air Curtain Series options

Check photos, key specs, typical uses, and document needs before requesting current model documents.

Ceiling Mounted Air Curtain equipment view

Ceiling Series

Ceiling Mounted Air Curtain

Ceiling mounted air curtain for constrained headers, recessed ceiling plans, and projects where the air curtain should stay visually integrated with the ceiling while door width, mounting height, and service access are checked.

Use a ceiling mounted air curtain when the doorway needs recessed overhead integration; compare surface-mounted air curtain series when the ceiling cannot provide plenum depth, service access, or a clean discharge path.

Ceiling air curtain model documents should be requested with finished opening width, mounting height, ceiling opening size, plenum depth, voltage, controls, and project photos.

Key specs
Airflow air volume 1260-3300 m3/h high speed; 1000-2600 m3/h low speed by model Project input Voltage Confirm the US voltage option Model check Mounting Ceiling mounted / recessed; mounting height 3.5-4.0 m or 4.0-5.0 m by model class Project input
Typical uses
  • Recessed ceiling openings
  • Overhead mounting
  • Limited wall space
Build notes
  • Ceiling-mounted form factor for limited wall-header space
  • Use finished door width, mounting height, ceiling opening, and service panel access before comparing air curtain sizes
  • Discreet installation path for modern lobbies, recessed entries, or cold-room-adjacent doors
  • Supplied model table lists 900 / 1000 / 1200 / 1500 / 1800 / 2000 mm lengths, 3.5-5.0 m mounting-height classes, and 1260-3300 m3/h high-speed air volume by model
Check current model documents before quote or submittal use. Model data

Technical parameters

Ceiling Mounted Air Curtain technical parameters

The first model table shows how to read available values before final confirmation on the exact model page.

Spec field Selection value Use boundary
Model number Ceiling Series Model identifier
Airflow air volume 1260-3300 m3/h high speed; 1000-2600 m3/h low speed by model Project input
Voltage and phase Confirm the US voltage option Confirm by model
Power input 260-670 W high speed; 234-603 W low speed by model; confirm voltage and exact model power Confirm by model
Sound rating 50-60 dB high speed; 45-54 dB low speed by model; installed sound depends on ceiling conditions Project input
Dimensions 900/1000/1200/1500/1800/2000 x 225 x 290 mm model sizes; confirm inch dimensions Confirm by model
Weight Confirm shipping and installed weight Confirm by model
Mounting type Ceiling mounted / recessed; mounting height 3.5-4.0 m or 4.0-5.0 m by model class Project input
Warranty Confirm warranty terms by product and sales channel Confirm by model

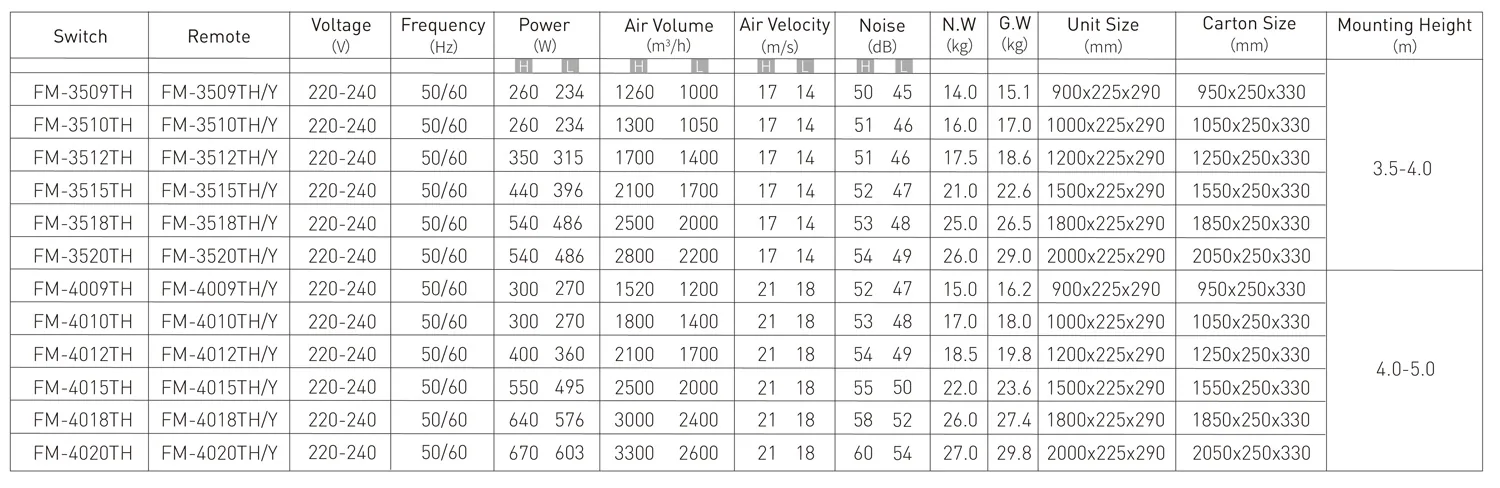

Model table

Ceiling Mounted Air Curtain Source Parameters

Source parameterPublished source valueSelection use
Air volume1260-3300 m3/h high speed; 1000-2600 m3/h low speed by modelUse as a source airflow range; confirm exact model data before submittal use
Air velocity17 / 14 m/s or 21 / 18 m/s high / low by model classUse as a source velocity range; confirm selected class before submittal use
Motor power260-670 W high speed; 234-603 W low speed by modelConfirm voltage and exact model power before quotation
Noise level50-60 dB high speed; 45-54 dB low speed by modelUse as a source sound range; installed sound depends on ceiling and duct conditions
Unit size900-2000 x 225 x 290 mm by modelMatch length to finished door width and verify plenum clearance
Mounting height3.5-4.0 m or 4.0-5.0 m by model classCheck ceiling opening, access panel, and discharge path before layout use

Equipment photos

Equipment views that change selection

Use the photos to confirm the visible form factor, access side, mounting details, and service points before reading the longer selection notes.

Ceiling Mounted Air Curtain Series equipment detail 1
Ceiling formatFor projects with limited wall header space and overhead access.
Ceiling Mounted Air Curtain Series equipment detail 2

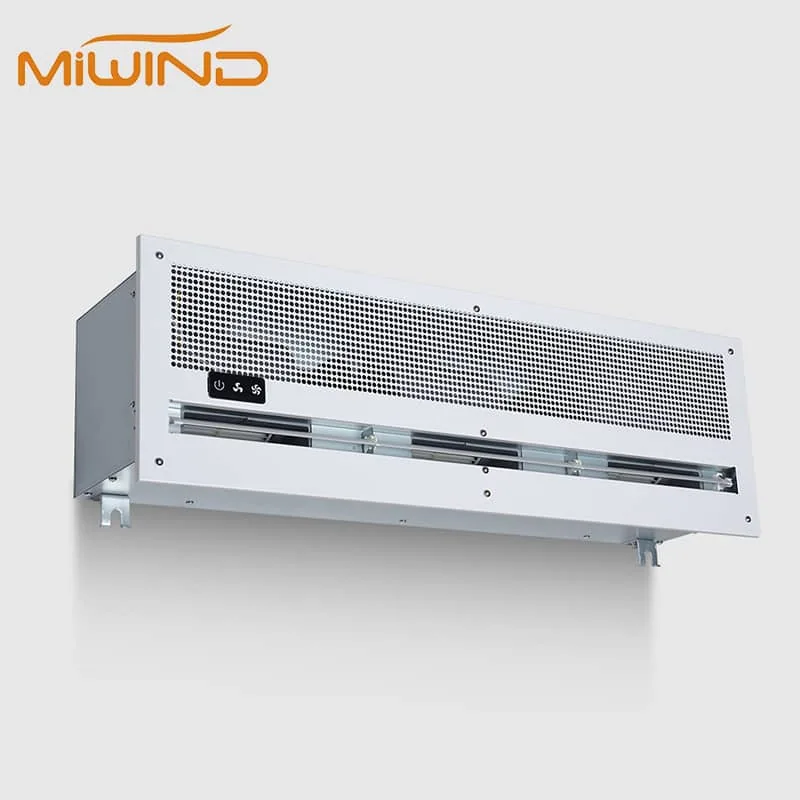

Intake viewConfirm ceiling access, intake clearance, and service space before review.
Ceiling Mounted Air Curtain Series equipment detail 3

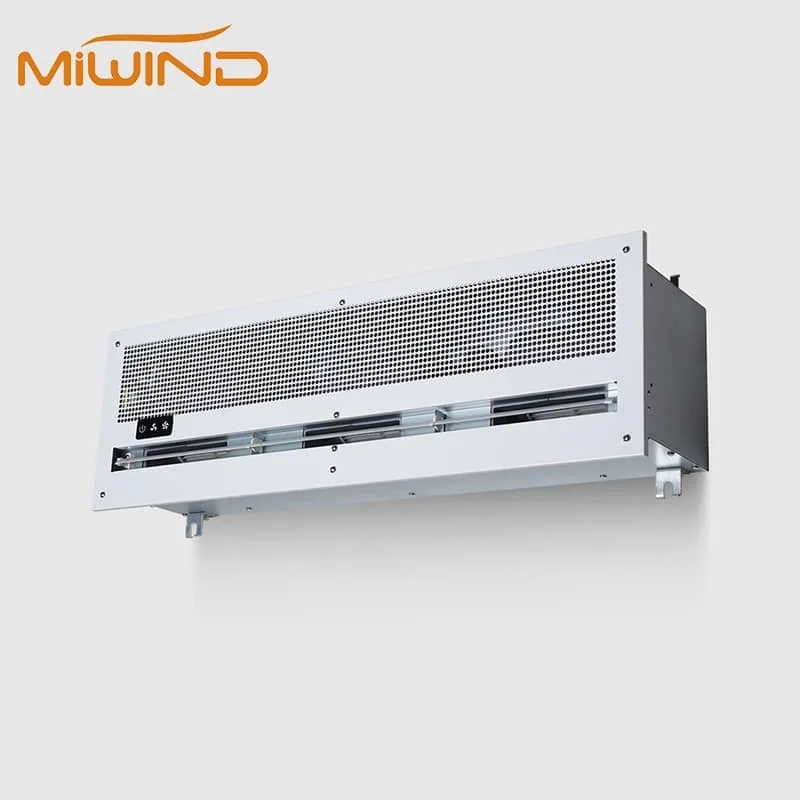

Panel detailPanel fit, access, and finish should be checked against the ceiling plan.

Applications

Applications

For submittal documents or current model documents, prepare door dimensions, mounting height, voltage, heated or unheated preference, controls, quantity, and any certification or document requirement by exact model.

Typical uses

Review doorway width, clear opening height, traffic pattern, wind exposure, and whether the entrance is retail, restaurant, cold-room, or service-door use. Treat a restaurant entrance air curtain with frequent door traffic as a separate review from a cold-room or low-traffic interior opening.

Selection boundary

Review this series when the project needs a surface-mounted door air curtain. Move to another series when the opening needs a different motor class, heated construction, recessed mounting, cold-storage duty, or wider industrial coverage.

Installation review

Check header clearance, bracket position, electrical access, door sensor expectations, and discharge direction before treating the model as ready for ordering. Photos of the doorway usually improve the first review.

Parameter reading

Read airflow, velocity, sound, width, voltage, and control notes together. A door-width match alone is not enough when comfort, insect control, heating, or cold-room separation is part of the decision.

Sizing Inputs

Open doors create comfort complaints, insect entry, dust movement, and temperature swings that need doorway-specific review.

Start with the visible model cards above, then collect the few site conditions that change equipment fit before requesting final model documents.

  • Start with finished door width, finished door height, and mounting height.
  • Confirm whether the opening is indoor-to-outdoor, conditioned-to-unconditioned, or cold-room service.
  • Review voltage, heating preference, control method, and available mounting space before model selection.
Door widthMounting heightHeated or unheatedVoltageAir velocity or airflow dataSound rating where available
